Name: Steel Rib Lath Mesh 20mm Depth For Plaster Bonding Capacity
Brand: HEBEI CITTI MESH CO.,LTD
SKU: 리브 라스
Price: 22.00 USD
Availability: InStock

Steel Rib Lath Mesh 20mm Depth For Plaster Bonding Capacity

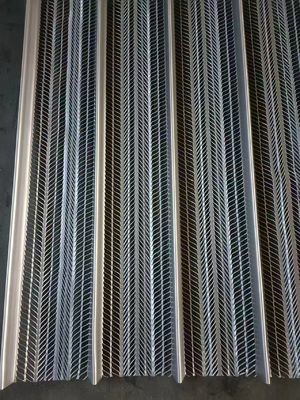

큰 이미지 : Steel Rib Lath Mesh 20mm Depth For Plaster Bonding Capacity

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Citti Mesh
모델 번호:	리브 라스

결제 및 배송 조건:

최소 주문 수량:	협상 가능
가격:	협상 가능
배달 시간:	약 7 일
지불 조건:	l/c, t/t

접촉

Steel Rib Lath Mesh 20mm Depth For Plaster Bonding Capacity

설명

재료:	아연도강, 스테인레스 강.	표면 처리:	직류 전기로 자극됩니다.
갈비 깊이:	4-20mm	갈비 거리:	75-150mm
시트 너비:	200~700mm	시트 길이:	1500-2500mm
강조하다:	steel rib lath mesh for plaster , 20mm depth expanded metal mesh , plaster bonding wire mesh

High Strength Rib Lath Mesh With Great Plaster Bonding Capacity

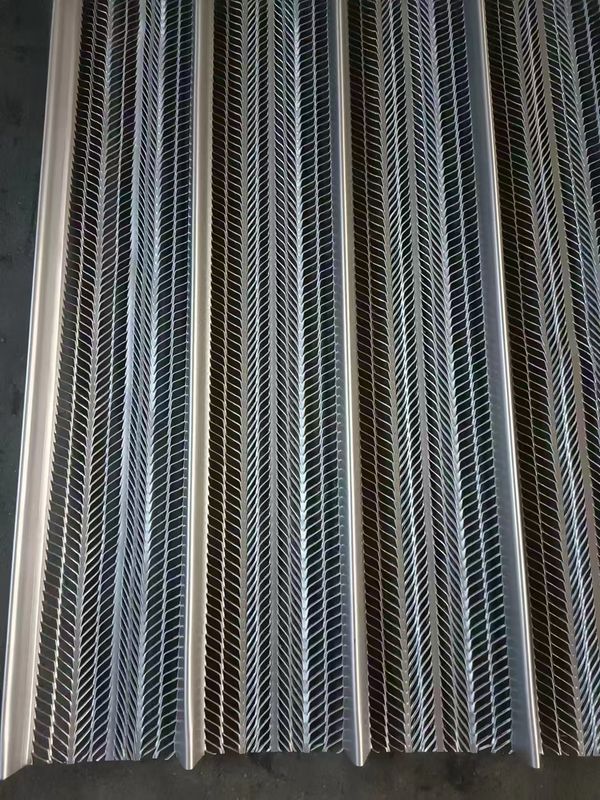

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet. Also known as expanded ribbed lath, it features V-ribs that provide increased tensile strength and uniform plastering depth over large coating areas. Compared to standard metal lath, the V ribs offer superior support capacity and unique structure for better permeability, resulting in enhanced plaster bonding and fixing properties.

Key Features

Exceptional stiffness and high tensile strength for durability
Provides excellent keying surface for plaster adhesion
Flexible structure allows bending and shaping as needed
Simplifies construction with time-saving even plastering surface
Lightweight design for easy cutting, binding, and nailing onto keel light steel frames

Product Specifications

Type	Code	Rib Depth	Rib Distance	Sheet Size
3/4" High Rib Lath (High Rib Stay Form)	CT-HR	3/4"	98 mm	27" * 97"
High Rib Variants	CT-HR3	19-20 mm	100 mm	200 mm width
	CT-HR4	19-20 mm	100 mm	300 mm width
	CT-HR5	19-20 mm	100 mm	400 mm width
	CT-HR6	19-20 mm	100 mm	500 mm width
	CT-HR7	19-20 mm	100 mm	600 mm width
	CT-HR8	19-20 mm	100 mm	700 mm width
3/8" Middle Rib Lath	CT-MRB5	10 mm	150 mm	600 x 2200-2500 mm
3/8" Middle Rib Lath	CT-MRB7	10 mm	100 mm	600 x 2200-2500 mm
3/8" Middle Rib Lath	CT-MRB9	10 mm	75 mm	600 x 2200-2500 mm
1/8" Flat Rib Lath	CT-FRB5	4 mm	150 mm	600 x 2200-2500 mm
1/8" Flat Rib Lath	CT-FRB7	4 mm	100 mm	600 x 2200-2500 mm
1/8" Flat Rib Lath	CT-FRB9	4 mm	75 mm	600 x 2200-2500 mm

Applications

Rib lath is extensively used in plastering works on walls and suspended ceilings, serving as an ideal plaster base for building construction projects.
